Product Technical Parameters:

• Power rating: 0.1- 2.2KW
• Power Supply: 90-260V AC
• Cut off pressure setting range : 0.1-10bar
• Maximum working pressure : 10bar
• Nominal Pressure: 12bar
• Maximum liquid temp: 100deg
• Rated Current: 30amps
• - Out let / Inlet : G1“ Male Connections
• Index of Protection : IP65 , Out door Weather proof

Features:

• Automatic smart control for pumps operation control , functioning with both pressure and flow sensors simultaneously.
• Suitable for all applications of lifting water from lower tanks to upper tanks up to 100m head, or for boosting water in the network and for water suction from the main supply.
• Operates silently and without disturbance. The device stops working when the water supply shortage to protect the pump from defects.
• The device will automatically restart when the water is present again.
• Equipped with control buttons(+,-) for pressure adjustment. Starting pressure in lifting risers operation is set by + — buttons.

Characteristic:

The pump controller has stepless pressure regulation intelligent pressure identi cation, suitable for various pressure environment applications of pump control equipment. it can completely replace the traditional System composed with traditional tank, pressure switch, water shortage protection device, check valve, four-way, timer and so on.

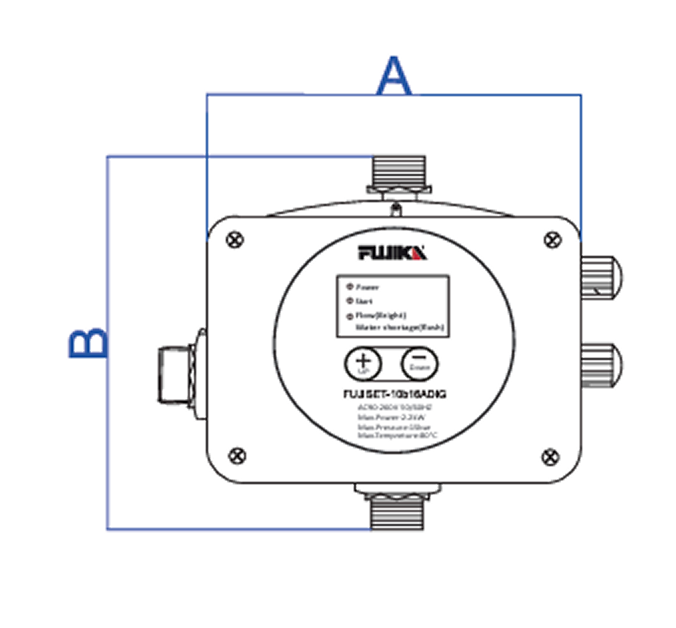

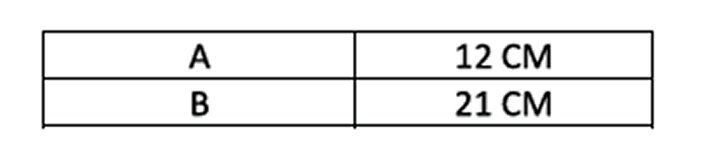

Overall Dimension:

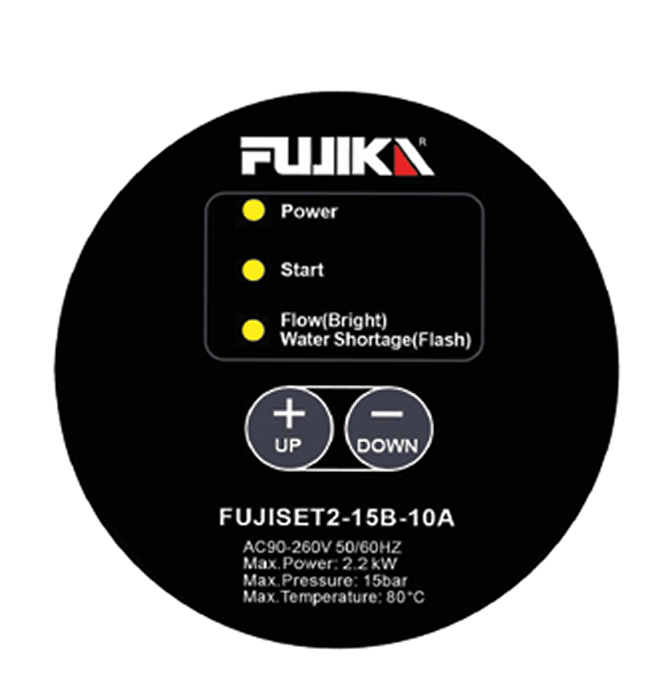

Startup and Operation:

1. "UP+" key: High Floor Water pump does not start, please press "UP+" key repeatedly until start, then.
2. "DOWN-" Key: Shut-off Valve appears one open and one stop,please press "DOWN." key repeatedly untill the phenomenon disapeared: and repair the pipeline or import check valve is caused by leakage.
